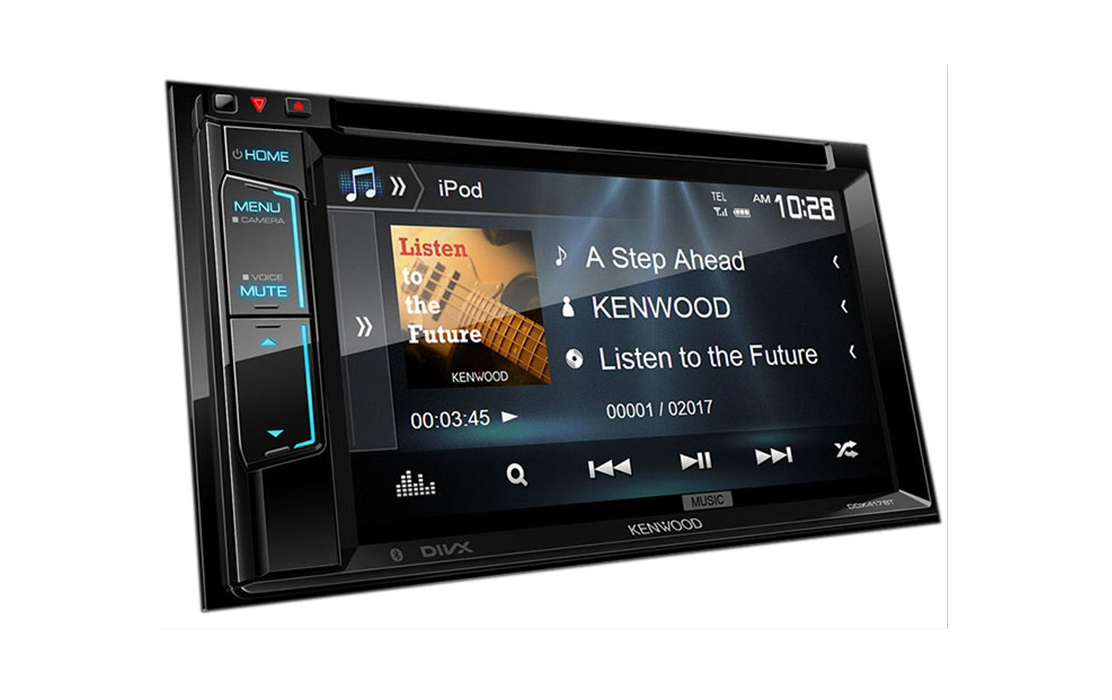

Kenwood DDX417BT 6.2 Inch Built-in Bluetooth Double Din AV Stereo Receiver

SPECIFICATIONS

1. Monitor Specifications

• Picture size: 6.2 inches(diagonal) wide
• W x H: 137.5mm x 77.2mm
• Display system: Transparent TN LCD panel
• Drive system: TFT active matrix system
• Number of pixels: 1,152,000; 800H x 480V x RGB
• Effective pixels: 99.99%
• Pixel arrangement: RGB striped arrangement
• Back lighting: LED

2. DVD Specifications

• D/A Converter: 24Bit
• Audio Decoder: Linear PCM; Dolby digital; MP3/WMA/AAC(.m4a)/WAV
• Video Decoder: MPEG1/MPEG2/DivX/JPEG
• Wow & Flutter: Below Measurable Limit
• Frequency response: 96k Sampling 20 – 22,000 Hz; 48k Sampling 20 – 22,000 Hz; 44.1k Sampling  20 – 20,000 Hz
• Total harmonic distortion 1kHz: 0.010%
• Signal to Noise ratio: 99dB(DVD-Video 96k)
• Dynamic range: 99dB(DVD-Video 96k)
• DISC Format: DVD-Video/VIDEO-CD/CD-DA
• Sampling frequency: 44.1kHz/48kHz; 96kHz
• Quantifying bit number: 16/20/24bit

3. USB specifications

• USB Standard: USB2.0 Full Speed / High Speed
• Compatible Devices: Mass storage class
• File System: FAT 16/32
• Maximum Power Supply Current: DC5V(DC logo)=1.5A
• D/A Converter: 24bit
• Audio Decoder: MP3/WMA/AAC(.m4a/.aac)/WAV/FLAC
• Video Decoder: MPEG1/MPEG2/DivX/JPEG

4. Bluetooth specifications

• Technology: Bluetooth V3.0
• Frequency: 2.402 – 2.480 GHz
• Output Power: +4dBm (MAX),0dBm (AVE) Power Class 2
• Maximum Communication range: Line of sight approx.10m (32.8ft)
• Audio Codec: SBC/AAC
• Profile :HFP(Hands Free Profile) 1.6
• A2DP(Advanced Audio Distribution Profile) 1.3
• AVRCP(Audio/Video Remote Control Profile) 1.5
• GAP(Generic Access Profile)
• PBAP(Phonebook Access Profile) 1.2
• SDP(Service Discovery Profile)
• SPP(Serial Port Profile) 1.2

5. FM specifications

• Frequency range : 87.5 MHz – 108.0 MHz
• (Frequency step): (50 kHz)
• Usable sensitivity: 6.2 dBf
• S/N:26dB: 0.56 μV / 75 Ohms
• Quieting sensitivity: 15.2 dBf
• S/N:46 dB: 1.58 μV / 75 Ohms
• Frequency response (±3.0 dB): 30 Hz – 15 kHz
• S/N (dB): 68 dB(MONO)
• Selectivity: Over 80 dB(±400 kHz)
• Stereo separation: 40 dB(1 kHz)

6. AM specifications

• Frequency rang: 531 kHz – 1602 kHz
• (Frequency step): (9 kHz)
• Usable sensitivity: MW … 28.5μV / LW … 45μV

7. Video specifications

• Color system of external video input: NTSC/PAL
• External video input level (mini jack): 1Vp-p / 75Ohms
• External audio max input level (mini jack): 2V / 25kOhms
• Video Input level (RCA jacks): 1Vp-p / 75Ohms
• Video Output level (RCA jacks): 1Vp-p / 75Ohms
• Analog RGB input: 0.7Vp-p / 75Ohms

8. General specifications

Operating voltage: 14.4V(10.5V to 16V)
Maximum Current consumption: 10A
Installation Dimensions (WxHxDs): 178mm x 100mm x 162mm
Operational temperature range: -10°C to +60°C
Weight (Main Unit): 1.7 kg

NOTE: Pictures are for visualization only and may vary on actual items
