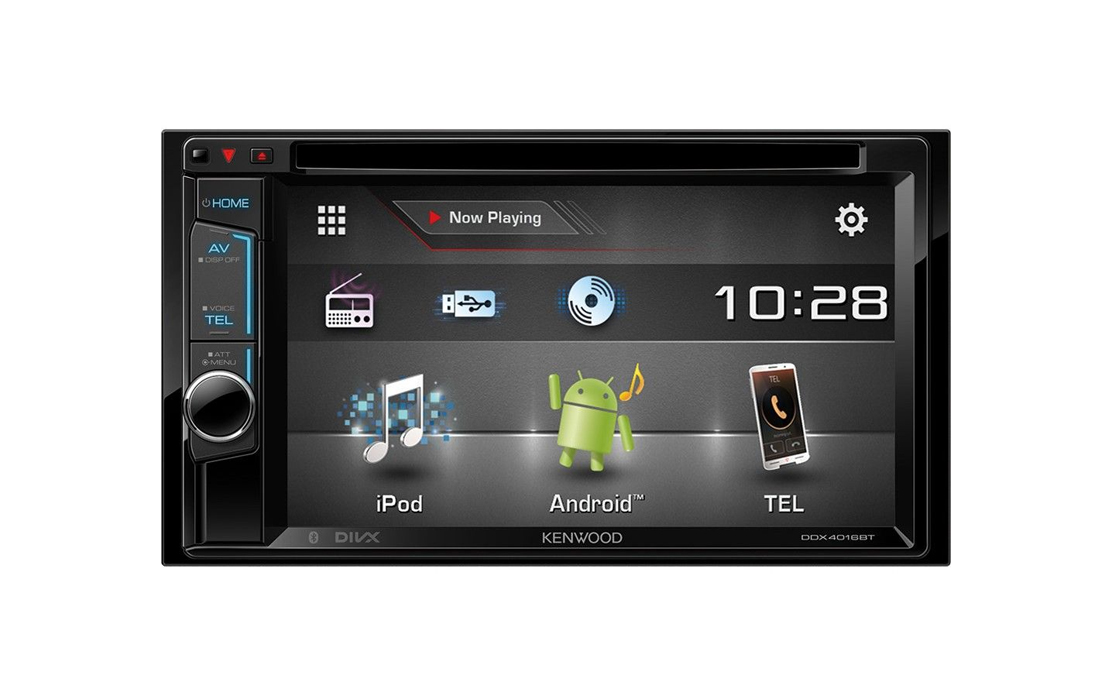

Kenwood DDX 416BT Car DVD Stereo
Php 18,500.00
Kenwood DDX416BT 6.2" Built-in Bluetooth Double DIN AVStereoReceiver
INQUIRY FORM
- Key Features
| 6.2″ Wide VGA Touch Screen |
| Rotary Volume control |
| Selectable language (21) for text & Menu |
| RDS Tuner |
| USB/CD/DVD (Region 2) |
| Bluetooth Dual Phone Handsfree & Audiostreamng |
| 3 RCA Highvoltage (4V) preouts |
| 2AV inputs/1AV output/ Rear camera input with parking guide lines |
| iPod/iPhone/Android MSC/AOA2 ready |
| 13 Band EQ / Digital Time Aligment |
- General Features
| DIN Size | 2 DIN |
| Disabled System Indicator (DSI) | Yes |
| Security Code Function ( user set) | Yes, (4 Digit Code) |
| On Screen Display (OSD) Operation | Yes |
| Smooth GUI | Yes |
| Selectable GUI Background Wallpaper | Yes |
| Key Illumination | Variable color |
| Rotary Encoder & Control Knob | Yes |
| Touch sensor | Yes |
| Installer Memory | Yes |
| Back-up Memory | Yes |
| Attenuator with Smooth Volume Return | Yes |
| Optional IR remote controller | Yes, (KCA-RCDV331) |
| Digital Clock (24H) | Yes |
| ISO connector | Yes |
| Bluetooth unit built-in | Yes |
| Optional navigation system unit | Yes |
| Firmware upgreadable | Yes |
- Monitor Features
| Screen Type | 6.2″ Wide VGA |
| High Resolution VGA Display | Yes |
| LCD backlight | LED |
| Display Mode | 4 Mode (Full/Just/Zoom/Normal) |
| Screen Adjustments | Brightness/Tint(NTSC only)/Colour/Contrast/Black Level/Sharpness |
| Dimmer function | ON/OFF/Sync/Navi-Sync |
| Dimmer Level | Auto/On/Off |
| Visual Source Mode | DVD/Video/USB/iPod/App |
| Touch Panel | Non Glare |
| NTSC/PAL judge | Yes (Auto) |
- Multimedia GUI Features
| Variable Colour illumination | Yes |
| Software updates (SoC) | by USB |
| Graphics Type | Graphics |
| Demonstration Mode | Yes |
| Top Menu Customize | Yes |
| Background Customize | User + Preset |
| Preset Wallpaper Type | Yes, 9 types |
| Scroll Display | Yes |
| R-CAM interrupt | Yes |
| R-CAM Caution On Screen Display | Yes |
| Menu text in selectable language | 21 langauges: ► English (UK) (Default) ► English (US) ► Spanish ► French ► German ► Italian ► Dutch ► Russian ► Portuguese ► Chinese (Simplified) ► Chines ► Korean ► Thai ► Turkish ► Arabic ► Persian ► Hebrew ► GreeK ► Indonesian ► Polish ► Czech ► Hungarian |
- Tuner Features
| ATomIC tuner | Yes |
| Station Select | List |
| FM Reception | Yes |
| AM (MW/LW) Reception | Yes |
| Tuner Presets (FM/AM) | 20 Presets (15FM / 5AM) |
| Tuning mode | |
| Up/Down Seek/Scan | Yes |
| FM Stereo / Mono Selector | Yes |
| Radio Data System | Yes |
| Radio Text Plus | Yes |
| Traffic Information | Yes |
| Local search | Yes |
| AF Regional | Selectable: AF/AF Reg/OFF |
| Auto TP search | Yes |
| Enhanced Other Networks Function (EON) | Yes |
| Program Type Function (PTY) | Yes |
- Bluetooth General Features
| Hands Free Profile (HPF) | V1.6 |
| Hands Free Profile with High Sound Quality | HFP V1.6 |
| 2 Phones Switchable Hands Free | Yes |
| 2 phones fulltime connection | Yes |
| Advanced Audio Distribution Profile (A2DP) | Yes, (AAC) |
| Serial Port Profile (SPP) | Yes |
| Phonebook Access Profile (PBAP) | Yes, Accessible phonebook entries & alphabet search |
| Generic Access Profile (GAP) | Yes |
| Audio/Video Remote Control Profile (AVRCP) | Yes, V 1.5 (Audio File browsing) |
| iPhone & Android automatic pairing via USB | Yes |
| Works with iPhone Siri | Yes |
| Catchphone / Call Waiting | Yes |
| Private mode | Yes |
| Interrupt call request | Yes |
| Voice Control | Yes |
| Noise Canceller | Yes |
| Echo Canceller | Yes |
| Phone device status display | Yes |
| Signal strength display | Yes |
| Remaining battery display | Yes |
| Bluetooth phones to register | 5 |
| High-quality noise canceling microphone | |
| Bluetooth firmware upgradeable | Yes |
| * depends on phone model/make | & Kenwood unit |
- DVD-Features
| Disc Capacity | 1 Disc(s) |
| DVD Region Code | 2 |
| DVD±R/RW Compatible | Yes |
| CD-R/RW Compatible | Yes |
| CD-DA Repeat/Scan/Random play | Yes |
| CD Text | |
| MP3, WMA,AAC & WAV playback | Yes |
| MPEG1/2 Video File (.mpg) Compatible | Yes |
| JPEG File (.jpg) Compatible | Yes |
| DivX | Yes |
| Zoom Control (DVD/VCD) | Yes |
| Time Code Display | Yes |
| Direct Search | Yes |
- USB Features
| Rear USB Terminal | Yes |
| USB Type | 2.0 Full speed |
| Drive Change | Yes |
| Kenwood Music Editor Lite Compatible | Yes |
| Kenwood Music Control App for Android | Yes |
| MP3, WMA, AAC & WAV playback | Yes |
| DivX (Home Theather 3.1) | Yes |
| MPEG1, MPEG2, JPEG | Yes |
| JPEG slide show | Yes |
| Zoom control (movie/photo) | Yes |
| Repeat / Random Play | Yes |
| Direct search | Yes |
| Resume play | Yes |
| Time code display | Yes |
| 1A Charge Capability for Smartphone. | Yes |
- iPod Features
| Made for iPod & iPhone * | Yes |
| USB Direct Control (Audio, 1 wire, Lightning-connector) | with optional cable KCA-iP103 |
| USB Direct Control (Audio & Video, 2 wire, 30-pin connector) | with optional KCA-iP202 |
| USB Direct Control (Audio & Video, Lightning-connector) | With optional cable KCA-HD100, KCA-iP103 & Apple Lightning to HDMI AV adapter |
| Album art support | Yes |
| Music library search | Yes |
| Control by hand | Yes |
| App & iPod control mode | Yes |
| iTunes Radio App | yes iAP2 |
| 2 Speed search | Yes |
| Reverse browsing | Yes |
| Voice Control using Siri. | Yes |
| Bluetooth Auto Paring for iPhone | Yes |
| Battery charge + power control | Yes |
| * Always update to latest Apple firmware | |
| ** Apple Lightning – 30 pin adapter required | |
| *** In case of Apple Unit with Lightning Connector only Audio playback | Yes |
- Audio features
| Max. Output Power (MOSFET Power IC) | 4 x 50W |
| Pre-out | 3RCA: Front/Rear/Subwoofer |
| Volume Offset | Yes |
| Low Pass Filter (LPF) | Yes |
| Subwoofer Reference Level Adj. | Yes |
| High Pass Filter (HPF) | Yes |
| Balance/Fader Control | Yes |
| Loudness Control | Yes |
| Bass Boost | Yes |
| Att.(-20dB) with smooth Volume Return | Yes |
- Multimedia DSP Features
| Position Control | Yes |
| Position Preset | 4 Presets |
| Position Cabin Size | Yes |
| Graphic equalizer | Yes |
| Graphic Equalizer | 13 bands |
| G-EQ KBS | Yes |
| G-EQ manual setting | Yes |
| G-EQ f0 Qty | Yes, 4 |
| G-EQ adjustable level | Yes, -9dB / -9dB |
| Time Alignment | 0cm ~ 610cm |
| High Pass Filter (HPF) | Yes |
| HPF Cut Off Frequency | 14 |
| HPF Cut Slope Level | 4 |
| Low Pass Filter (LPF) | Yes (Non-Fading) |
| LPF Cut Off Frequency | 14 |
| LPF Cut Slope Level | 4 |
| Cross-over | Yes |
| Source DSP Memory | Yes |
| Speaker Size Control | Yes |
| Car type control | Yes |
| Channel Level Control | Yes |
| Space Enhancer | Yes |
| SupremeV | Yes |
| Realizer | Yes |
| Loudness | Yes |
| Bass Boost | Yes |
| Drive EQ | Yes |
- Video Features
| Audio/Video Input | Yes |
| iPod AV input switchable to additional AV input | Yes |
| Video-In for Rear-view Camera | 1 dedicated NTSC video input (RCA) |
| Detection Mode Rear View Camera | Reverse sensor wire |
| (Rear) camera display view control | Yes |
| Parking Guide Line | Yes |
| RGB Input For Navigation System | Yes |
| Advanced navigation terminal | Yes |
- Connectivity
| iPod Digital Connection (1 Wire) | Yes, KCA-iP102 (40pin) – KCA-iP103 (Lightning) |
| OEM Wired Remote Control ready | Yes |
| Programmable OEM Steeringwheel Remote Function | Yes |
| Parking sensor (handbrake) wire | Yes |
| Power Control (P.CON) wire | Yes |
| 2-way (Tel/Navi) mute wire | Yes |
| AV-Input (Switchable iPod / AV2-in) | |
| Reverse sensor wire | Yes |
| Rear View Camera Input | |
| Advanced navigation RGB terminal | Yes |
| FM Antenna Input | |
| External microphone input |
- Tuner Specifications
| FM range: 87.5Mhz – 108MHz (50Khz step) | Yes |
| FM Usable Sensitivity | 0.71μV/75ohm (S/N 8.2dBf) |
| FM Quieting Sensitivity | 2μV/75ohm (S/N 17.2dBf) |
| FM Frequency Response | 30Hz ~ 15kHz (± 3dB) |
| FM Signal to noise ratio (Mono) | 64dB |
| FM Selectivity(DIN) | over 80dB (±400kHz) |
| FM Stereo Separation (1kHz) | 40dB |
| MW range: 531kHz – 1611kHz (9kHz step) | Yes |
| MW Usable Sensitivity | 28.5μV |
| LW range: 153kHz – 279kHz (9kHz step) | Yes |
| LW Usable Sensitivity | 45μV |
- Bluetooth specifications
| Technology | Bluetooth V3.0 |
| Frequency | 2.402 – 2.48 GHz |
| Output power | +4dBm(max), 0dBm (AVE) power class 2 |
| Maximum range | Line of sight approx. 10 meter |
| Handsfree profile (HFP) | Yes, V 1.6 |
| Serial port profile (SPP) | Yes, V 1.2 |
| Service discovery protocol (SDP) | Yes |
| Advanced audio distribution profile (A2DP) | Yes, V 1.3 |
| Audio Codec | SBC/AAC |
| Audio/Video remote control profile (AVRCP) | Yes, V 1.5 |
| Generic access profile (GAP) | Yes |
| Phonebook access profile (PBAP) | Yes, V 1.2 |
- DVD Specifications
| D/A Converter | 24 bit |
| Video decoder | MPEG1/MPEG2/DivX |
| Audio decoder | Linear PCM/Dolby Digital/MP3/WMA/AAC/WAV |
| Wow & Flutter | Below Measurable Limit |
| Freq. Resp. (96kHz Sampling) | 20Hz ~ 22kHz |
| Freq. Resp. (48kHz Sampling) | 20Hz ~ 22kHz |
| Freq. Resp. (44,1kHz Sampling) | 20Hz ~ 20kHz |
| Total Harmonic Distortion | 0.01% (1kHz) |
| Signal to Noise Ratio | 99dB (1kHz) |
| Dynamic Range | 99dB |
| Disc Format | DVD-Video/Video-CD/CD-DA |
| Sample Frequency | 96k, 48k, 44,1k |
| Quantifying bit number | 16/20/24bit |
- USB Specifications
| USB Version compatibility | 2.0 Full Speed |
| File System | FAT 16/32 |
| Maximum Supply current | 1500mA |
| D/A Converter | 24 bit |
| Video Decoder | MPEG1/MPEG2/DivX |
| Audio Decoder | MP3/WMA/AAC/WAV |
- Audio Specifications
| Maximum Power | 50W x 4 |
| Output Power (DIN45324,+B=14.4v) | 22W x 4 |
| Preout Level | 4mV / 10kOhm, |
| Preout Impedance | ≤ 600Ohm |
| Speaker Impedance | 4Ohm ~ 8Ohm |
| Graphical Equalizer | 13-Band |
| G. EQ. Frequency (Hz) | 62,5Hz – 16kHz |
| G. EQ. Gain (dB) | -8/-7/-6/…/-1/0/1/…/6/7/8 |
| Subwoofer Level (dB) | -50 dB to +10dB |
- Video Specifications
| Color System of External Video Input | NTSC/PAL |
| External video input level (mini-jack) | 1 Vpp / 75 Ohm |
| External audio max. input level (mini-jack) | 2 Vpp / 25 kOhm |
| Analog RGB Input | 0.7 Vpp / 75 Ohm |
| Video input level (RCA) | 1 Vpp, 75 Ohms |
| Video Output Level (RCA) | 1 Vpp / 75 Ohm |
- Monitor Specifications
| Screen size (Diagonal) | 6.2 Inches Wide |
| Screen Size (WxH) | 137.5 x 77.2mm |
| Display system | Transparent TN LCD Panel |
| Drive system | TFT Active Matrix System |
| Number of Pixels | 1152000pixels (800(H) x 480(V) x RGB) |
| Effective pixels | 99.99% |
| Pixel arrangement | RGB Striped |
| Back lighting | LED (Light Emitting Diode) |
- General Specifications
| Operating voltage | 14.4V (10.5 ~ 16V Allowable) |
| Maximum Current Consumption | 10A |
| Dimensions (WxHxD) | 182 x 111 x 165mm |
| Weight, inclu. sleeve & escutcheon | 1.7 kg |
| Unit weight in individual package | 2.94 kg |
- Accessories
| Release keys | 2 pieces |
| Escutcheon | Yes |
| Installation Sleeve | Yes |
| DC cord (Molex to ISO) | 25 cm |
| Handsfree Microphone | with 2.5 m cable |
S.R.P. Php 21,500.00
Free installation. Credit cards accepted.
Option : w/ INAV navigation module Php 25,500.00
S.R.P. w/ INAV navigation module Php 29,000.00
NOTE: Pictures are for visualization only and may vary on actual items.
QUICK LINKS
PRODUCT CATEGORY
REACH US
Paranaque Branch: 52B President Ave. Teoville 3, Sucat, Paranaque City
CONTACT US
