General Specifications

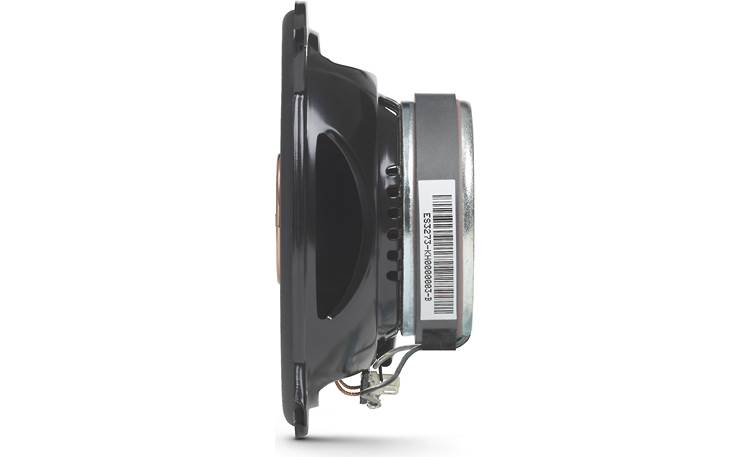

Description | 5-1/4″ (130mm) coaxial car speaker |
Power Handling | 45W RMS, 135W peak |
Sensitivity (@ 2.83V) | 92dB |
Frequency Response | 67Hz – 21kHz |
Impedance | 3.0 ohms |
Features
Edge-driven, textile tweeters
The audiophile-grade tweeters used in Infinity’s new Reference speakers deliver smooth, non-fatiguing sound even at high output levels.
Adjustable tweeter output level
The larger Reference multielement and component systems offer a tweeter output level control to optimize system linearity to suit installation location or the listener’s preference.
Plus One™ woofer cone architecture
Harman’s patented (US patent #7,548,631) Plus One™ cones provide more overall speaker-cone area than other cones in its class — the result is higher sensitivity, increased low-frequency output and accurate music reproduction.
Optimized Frame Size
Reference speakers are available in a range of standard sizes, and feature a compact design that allows them to fit just about any vehicle on the road today.
