Chevrolet Trail Blazer Back Up Camera
Php 3,500.00
Chevrolet Trail Blazer Back Up Camera
INQUIRY FORM
Package Included
1. Camera
2. Power cable
3. RCA/Video extension cable
4. Instruction
How to Install:
Take out your stock license plate light at the back of your car.
Fit the camera to where the stock license plate light was.
Connect the built-in license plate light of the camera to where the stock license plate light was connected to get the power
Connect the power of the camera to your reverse lights – red wire to positive and black wire to negative.
Connect the video cable of the camera to the extension cord.
Connect the extension cord to your car monitor/navigation system.
Features
Designed Specifically for Chevrolet Trail Blazer
Waterproof/Weatherproof
Night Vision – IR 0.1 LUX
Simple to Install (see steps below) – no drilling
Automatic Exposure/Gain control
Auto White balance control
Aperture/Gamma correction
Specifications
Sensor:1/3″color CMOS
Effective pixels:628X586
lens angle:170 degreesResolution: 420 TV Lines
Shutter speed: 1/60s-20us
Waterproof: IP67
Minimum illumination: 0.1Lux
Voltage:12V
Operating temperature: -40 to +80 RH95%Max
TV System: NTSC/PAL/SECAM

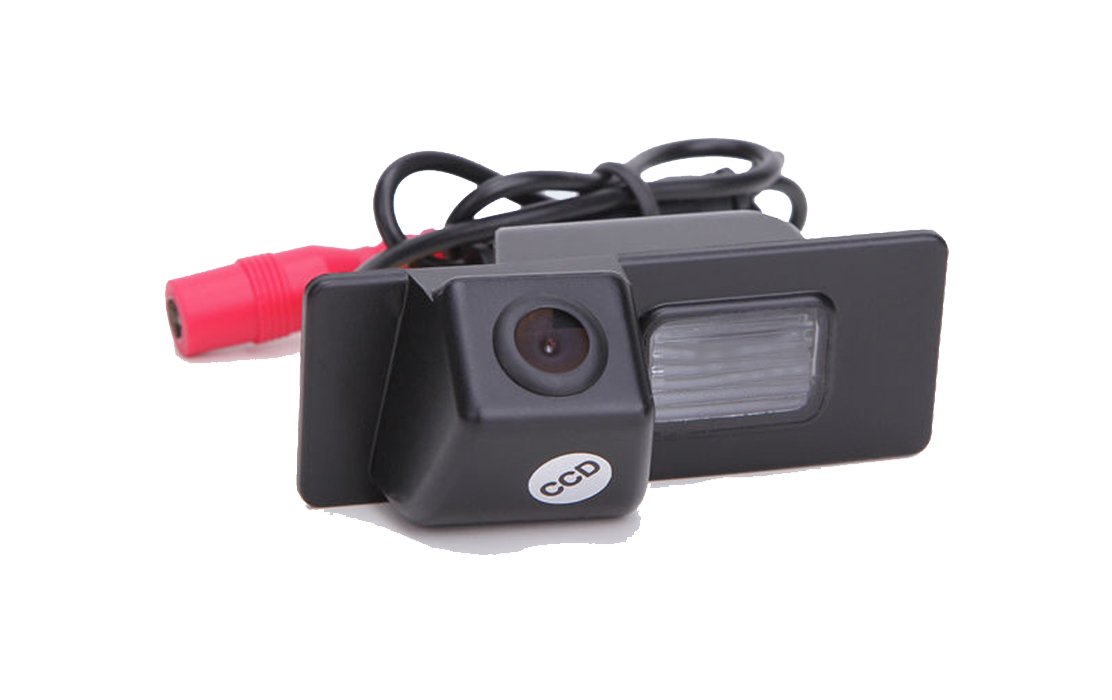

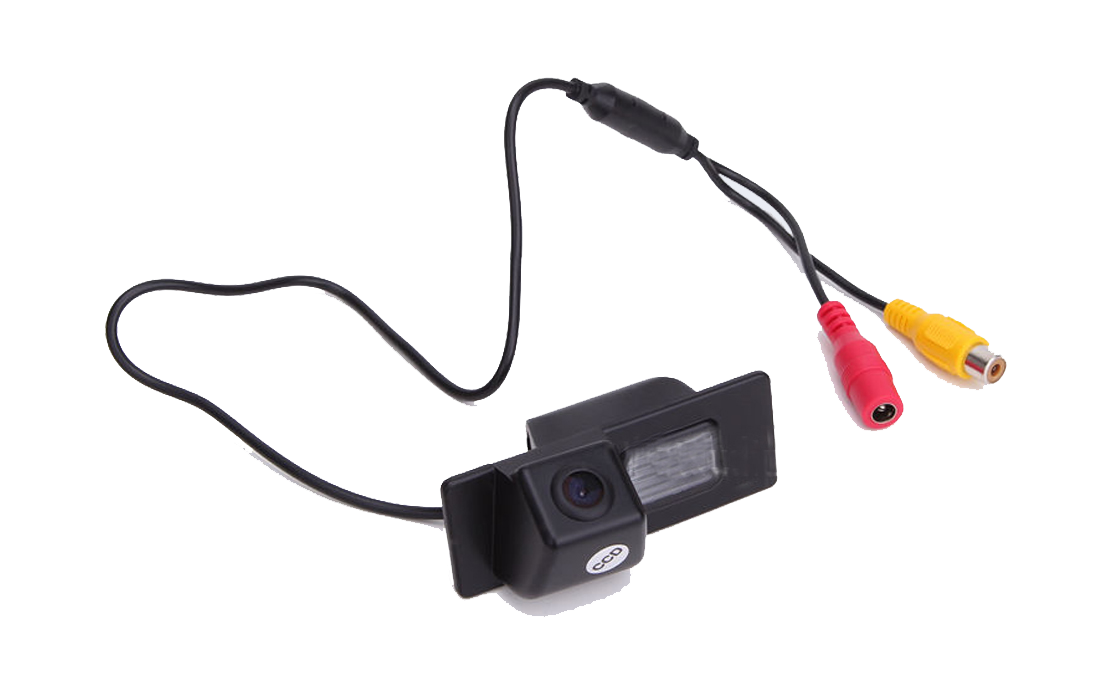

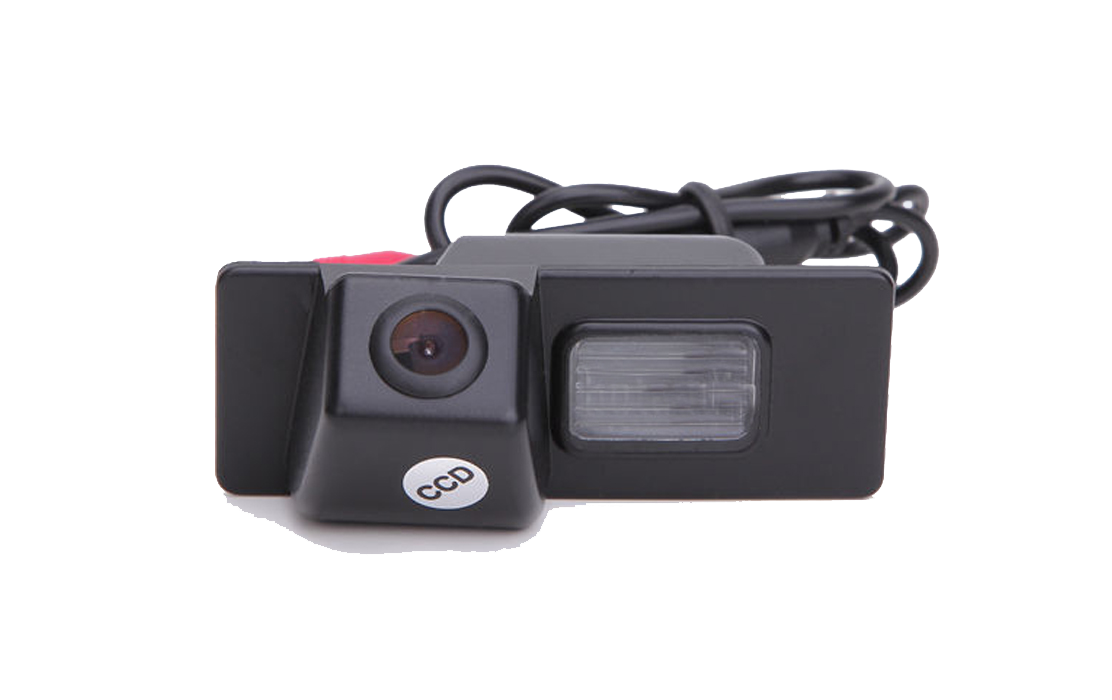

NOTE: Pictures are for visualization only and may vary on actual items.
